4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling

4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling
4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling
4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling 4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling
Informations de base
Lieu d'origine: Chine
Nom de marque: Briquetting Press
Certification: CE, ISO9001
Numéro de modèle: Y83-4000
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Emballage en état de navigabilité
Délai de livraison: 35-50 jours
Conditions de paiement: Western Union, Moneygram, D / P, T / T
Capacité d'approvisionnement: Dépendent de la demande des clients. 15 Pices / mois
meilleur prix Contactez
Force nominale: Le nombre d'unités de production est déterminé par la méthode suivante: Taille de la briquette (D x H): Φ140*300
Puissance du moteur: 30/37kw Garantie: 1 an
Capacité ((kg/h): 800-1200 système de contrôle: Fonctionnement manuel ou PLC semi-automatique
Condition: Nouveau Pression sur la balle: 260 MPa

4000 kN Metal Chip Briquetting Press with High Density Output for Cast Iron and Aluminum Chip Recycling

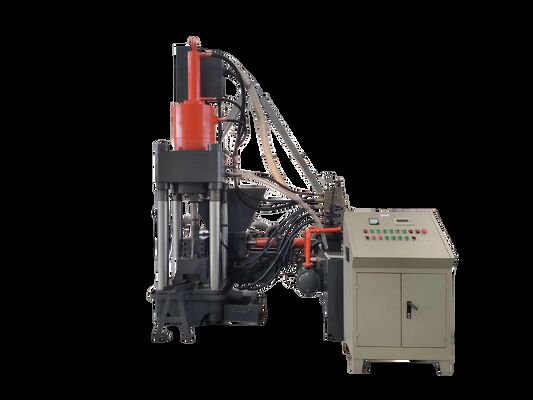

The 400-ton metal chip briquetting press is a high-performance hydraulic machine designed for compacting loose metal chips into dense cylindrical briquettes. It is widely used in CNC machining plants, foundries, and scrap recycling facilities to process steel chips, cast iron turnings, aluminum shavings, and other metal residues.

With a powerful 4000 kN pressing force, the machine ensures high-density output, making briquettes suitable for direct furnace charging. This greatly improves melting efficiency while reducing oxidation loss.

By converting loose chips into compact blocks, the system helps reduce storage space, lower transportation costs, and improve the overall recycling value of metal waste—especially important for European and South American markets with strict environmental and efficiency requirements.

Core Features / Key Advantages

  • Strong 4000 kN Hydraulic Pressure
    Produces high-density briquettes with excellent structural integrity
  • Stable Hydraulic System
    Equipped with high-quality valves and durable cylinders for long-term operation
  • Continuous & Efficient Production
    Designed for medium to large-scale processing capacity
  • Cold Pressing without Binder
    Maintains material purity and avoids secondary contamination
  • Oil Recovery Capability (Optional)
    Extracts cutting fluid during compression for reuse
  • Flexible Configuration
    Supports automation upgrades and customized solutions

Technical Specifications

Item Specification
Nominal Force 4000 kN (400 Ton)
Briquette Diameter Ø120 – 150 mm
Briquette Density ≥ 5.0 t/m³ (depending on material)
Production Capacity 3000 – 5000 kg/h
Main Motor Power 30 – 45 kW
Cycle Time 15 – 25 seconds
Operation Mode Manual / Semi-automatic / PLC Automatic
Cooling System Water cooling (optional)
Oil Recovery Available (optional)
Machine Weight Approx. 12 – 18 tons

Working Principle

The machine uses a hydraulic system to compress loose metal chips in the pressing chamber. The main cylinder applies high pressure to form compact briquettes with consistent density.

During compression, residual oil and coolant are squeezed out and can be collected through a recovery system. Once the briquette reaches the required density, it is automatically ejected, and the next cycle begins.

This ensures continuous, efficient, and stable operation for industrial metal recycling applications.

Applications

  • CNC machining workshops
  • Steel and aluminum processing plants
  • Foundries and casting industries
  • Scrap recycling centers
  • Automotive and component manufacturers

Customer Benefits

  • Reduce storage volume by 80–90%
  • Improve furnace efficiency and reduce melting time
  • Lower logistics and handling costs
  • Increase scrap resale value
  • Support environmentally friendly production

Optional Configuration

  • Siemens / Schneider electrical components
  • Automatic feeding conveyor
  • PLC + touch screen control system
  • Customized briquette size
  • Remote monitoring system

After-Sales Service

  • 12-month warranty
  • Lifetime technical support
  • Installation guidance and operator training
  • Spare parts supply with fast response
